How to install range hood?

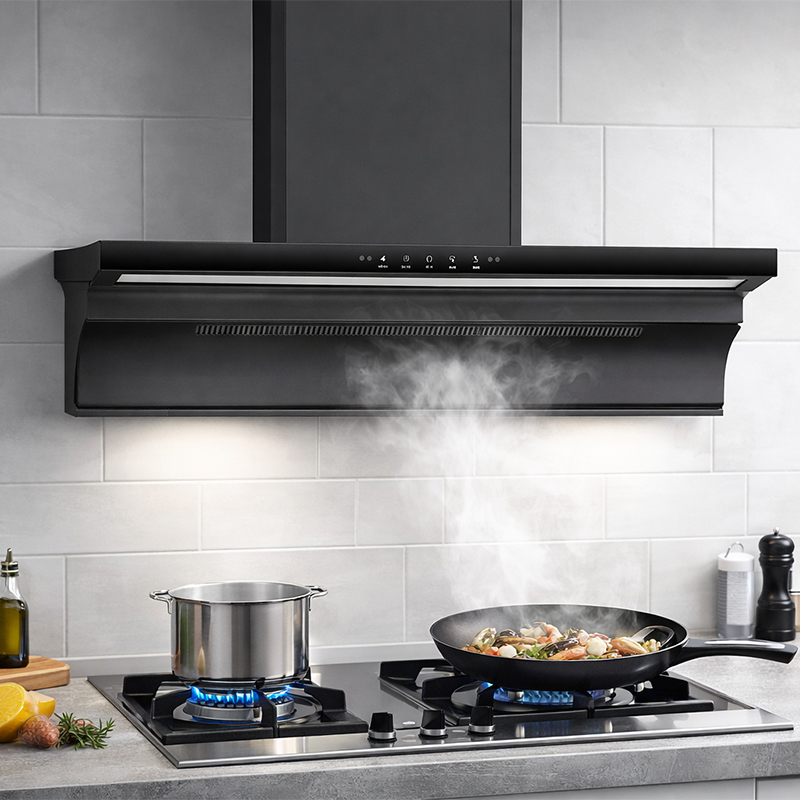

Struggling with how to install range hood? You’re not alone. Many homeowners and even contractors find the process confusing, especially when working with modern, feature-packed models like the Huaying Q2-01 wall mount range hood. This sleek, high-performance appliance combines the best of style and function: it’s a stunning black range hood, equipped with a bright range hood with light, built as a powerful range hood, and certified as an energy efficient range hood.

In this detailed guide, we’ll walk you through every step of installation, highlight key product specs, and share pro tips to ensure safe, effective setup. By the end, you’ll have your new wall mount range hood running smoothly—with no guesswork, no mistakes, and maximum performance.

Whether you’re replacing an old unit or installing for the first time, following this guide will help you get the most out of your black range hood with light and ensure it operates at peak efficiency for years.

Huaying Q2-01 Range Hood: Full Specification Table

Before diving into installation, let’s review the official specifications of the Huaying Q2-01. This data is critical for planning space, duct size, electrical requirements, and positioning.

Tools & Materials You’ll Need for Installation

Before you start, gather these tools to avoid delays:

Drill and drill bits (masonry bits for concrete walls)

Screwdrivers (Phillips and flathead)

Level

Tape measure

Pencil or marker

Adjustable wrench

Safety goggles and gloves

Ducting (rigid or flexible, matching your vent size)

Clamps for ducting

Aluminum foil tape

Mounting screws and anchors (appropriate for your wall type)

Electrical tape

Wire nuts

Stud finder

Having everything ready will make the process of learning how to install range hood much smoother and faster.

Step-by-Step Installation Guide: How to Install Range Hood (Huaying Q2-01)

Step 1: Choose the Right Location

Your wall mount range hood must be positioned correctly for optimal ventilation.

Standard height: 70–75cm above the cooking surface.

Ensure the hood is centered with your cooktop or range.

Check for studs in the wall using a stud finder—mounting into studs provides the strongest support.

Confirm there’s space for ducting to run vertically or horizontally to the exterior.

This step is critical for your powerful range hood to perform well and maintain its energy efficient range hood rating.

Step 2: Mark Mounting Points

Use a tape measure and level to mark the mounting bracket location on the wall.

Double-check alignment to avoid a crooked black range hood.

Mark holes for screws, making sure they align with wall studs where possible.

Accurate marking prevents re-drilling and ensures your range hood with light is perfectly straight.

Step 3: Install the Mounting Bracket

Drill pilot holes at your marked points.

Insert wall anchors if you’re not drilling into studs.

Secure the mounting bracket using heavy-duty screws.

Test the bracket by pulling gently—it should feel solid and stable.

A secure bracket ensures your wall mount range hood stays safely in place even at maximum fan speed.

Step 4: Prepare Ducting and Ventilation

Proper ducting ensures your powerful range hood expels smoke, steam, and cooking fumes efficiently.

Measure the distance from the hood’s vent outlet to the exterior wall.

Cut rigid or flexible ducting to length.

Attach ducting to the hood’s outlet using clamps and aluminum foil tape.

Avoid sharp bends—they reduce airflow and increase noise.

Remember: good ventilation preserves the ≥90% grease separation rate of your Huaying Q2-01.

Step 5: Electrical Connection (Safety First!)

Your Huaying Q2-01 operates on 220V/AC power.

Turn off the circuit breaker before handling wires.

Connect the hood’s wiring to your home electrical system using wire nuts.

Secure connections with electrical tape.

Ensure the range hood with light (≤3W LED) is properly connected for functionality.

If you’re unsure about electrical work, hire a licensed electrician to stay safe and compliant.

Step 6: Mount the Range Hood onto the Bracket

With help from a partner, lift the black range hood onto the mounting bracket.

Secure the hood to the bracket using the included screws.

Use a level to confirm it’s straight—adjust if needed.

Take your time here; a stable mount ensures quiet operation (≤69dB) even when using the stir-fry mode.

Step 7: Complete Ducting to Exterior

Run the ducting from the hood to the exterior vent cap.

Seal all joints with aluminum foil tape to prevent air leaks.

Ensure the exterior vent opens and closes properly to keep out pests and weather.

Leaky ducts reduce efficiency and undermine your energy efficient range hood status.

Step 8: Install Filters and Accessories

Attach the aluminum or stainless steel grease filters.

Insert the LED lamp for your range hood with light.

Test the HB27TG switch to ensure all controls work.

Proper filter installation supports the ≥90% grease separation rate and simplifies future cleaning.

Step 9: Test Your Wall Mount Range Hood

Once everything is installed:

Turn the circuit breaker back on.

Test fan speeds (regular 18m³/min, stir-fry 20m³/min).

Turn on the LED light.

Check for unusual noise or air leaks.

Verify the 80W electric heating cleaning system activates correctly.

If everything runs smoothly, congratulations—you’ve successfully learned how to install range hood!

Pro Installation Tips for Long-Term Performance

Regular Maintenance: The 80W electric heating system simplifies cleaning, but you should still wipe down the hood and replace filters periodically.

Avoid Over-Tightening Screws: This can crack the black finish or damage mounting points.

Seal All Duct Joints: Prevents smoke recirculation and maintains energy efficiency.

Follow Local Codes: Some areas require specific duct materials or clearances.

Keep the Manual: Store installation instructions and specs for future reference.

These habits extend the life of your powerful range hood and preserve its
